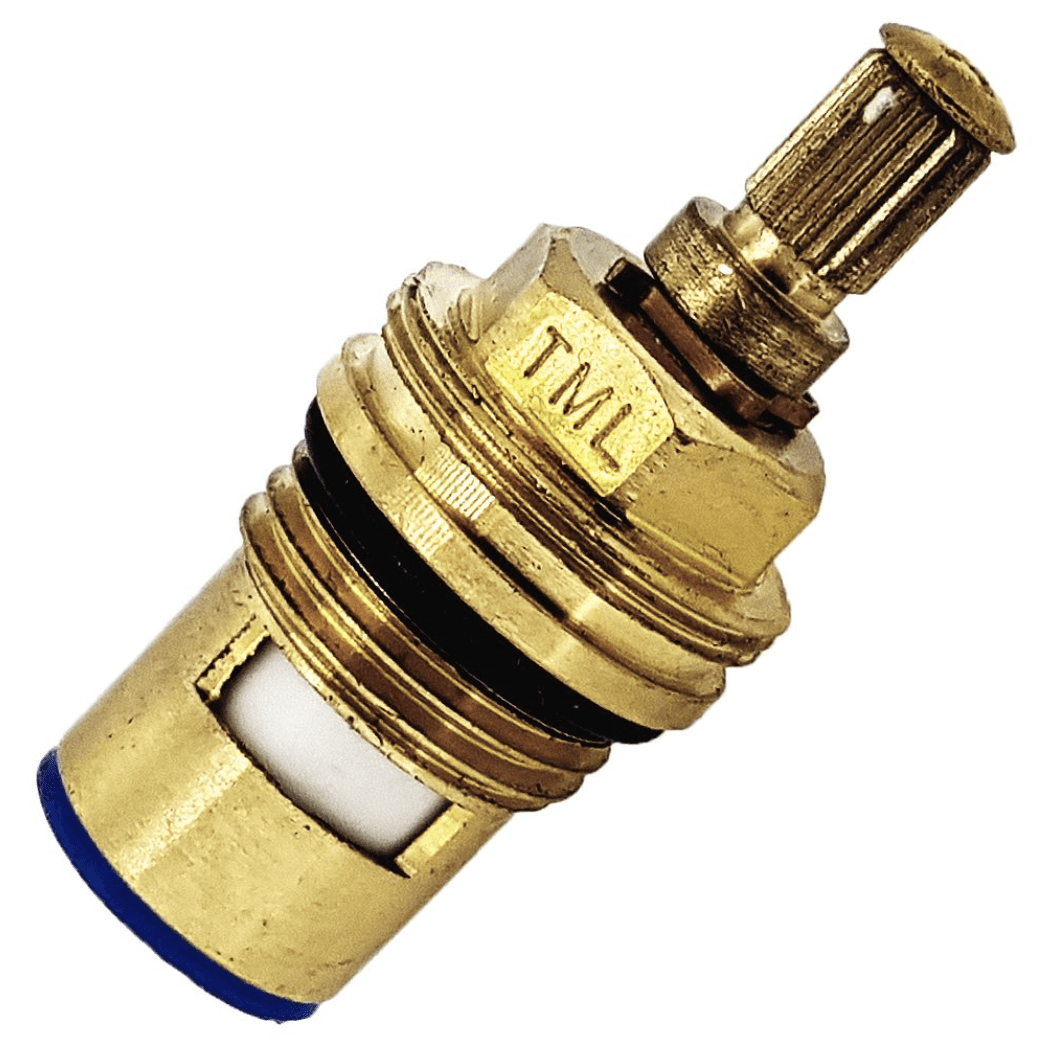

Chartley Conway Basin 1 x 1/4 turn valve, Clockwise Close to fit cold valve AV.9.13146CO

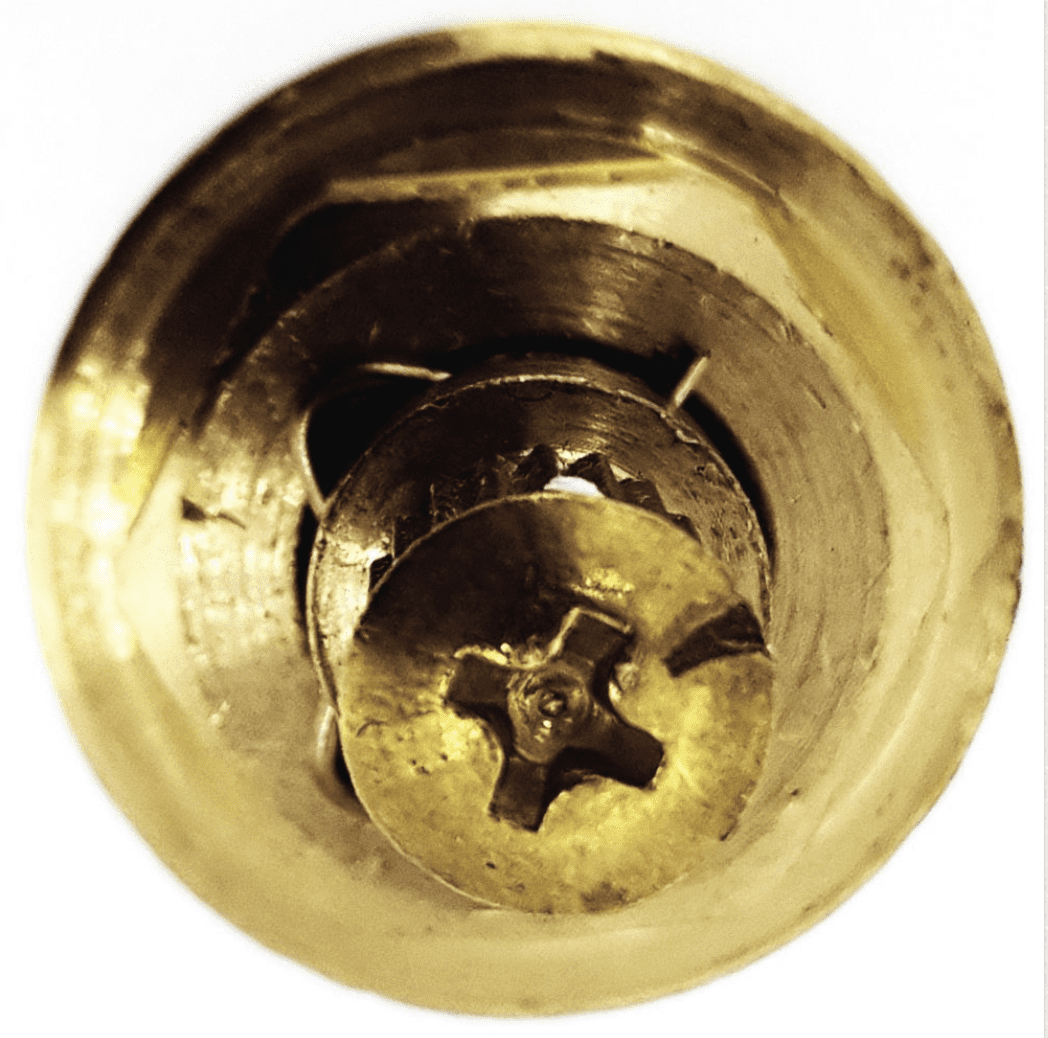

20 Spline 7.5mm dia
Clock Wise to Close ceramic Disc Cartridge
Cold
BSP 1/2 Thread diameter = 20.9mm (14TPI):
Threaded collar diameter = M24 thread size:
Dimension J = 18mm:
Dimension K = 23.8mm (see drawing Below)
-
MPN:AV.9.13146CO
-
Measurement A:53
-
Measurement B:30
-
Measurement C:23
-
Measurement D:12
-
Brand:Chartley
-
Product Code:AV.9.13146CO
-
Weight:3kg
